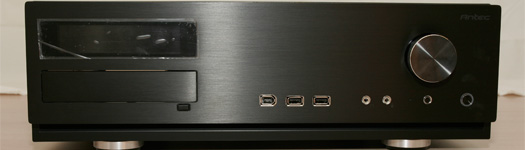

Antec Fusion Remote Black

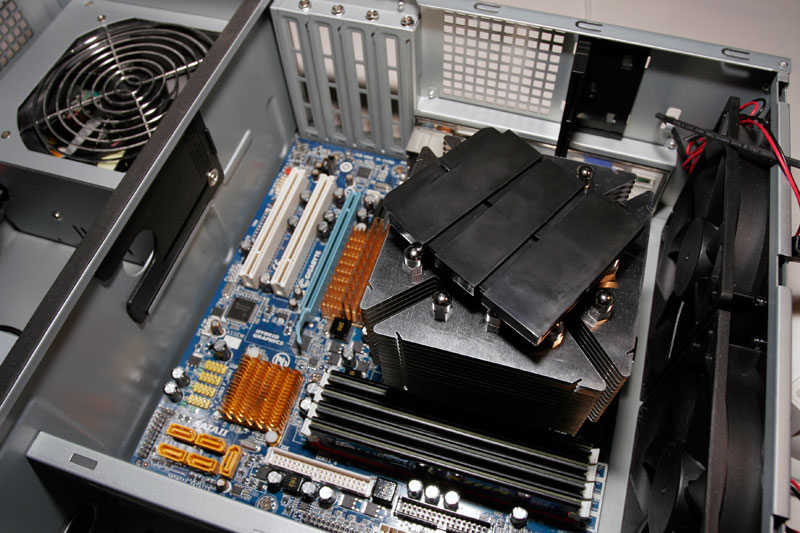

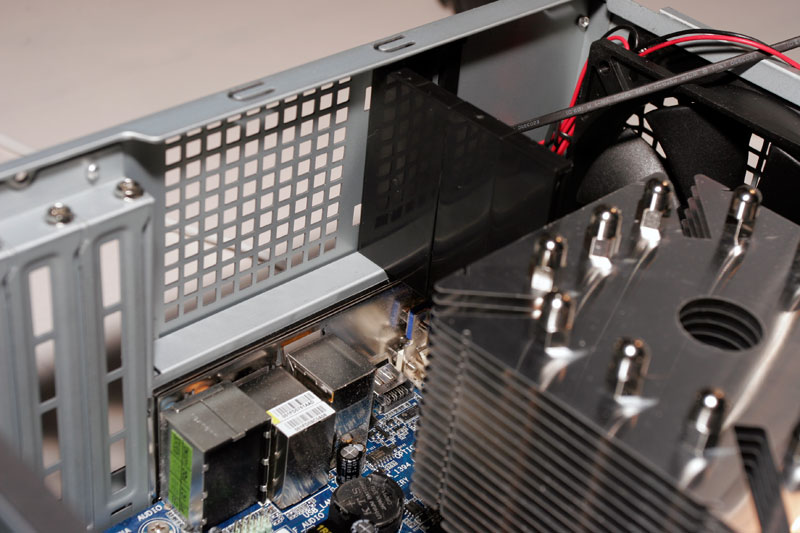

Now the PSU and motherboard are in place, we take a look on the black air guides on the heatsink.
These “air guides” are used to direct fresh air from the rear air intake to the CPU cooler to enhance the CPU cooling.

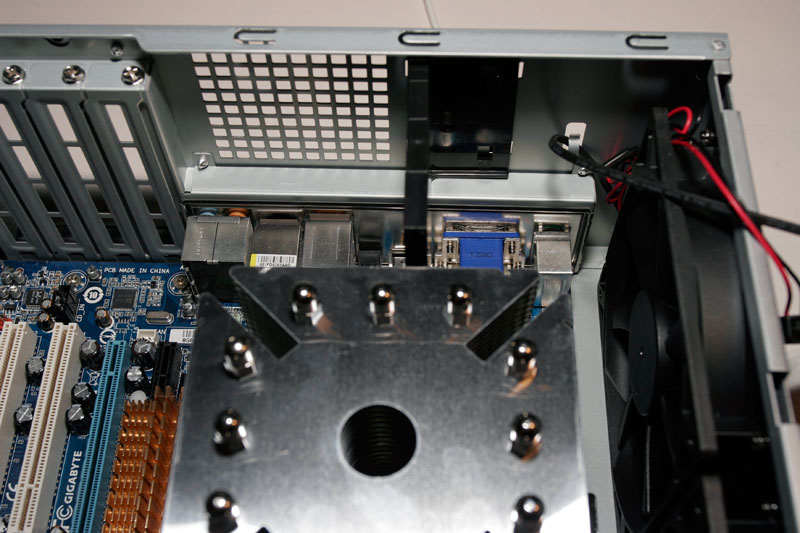

Another angle.

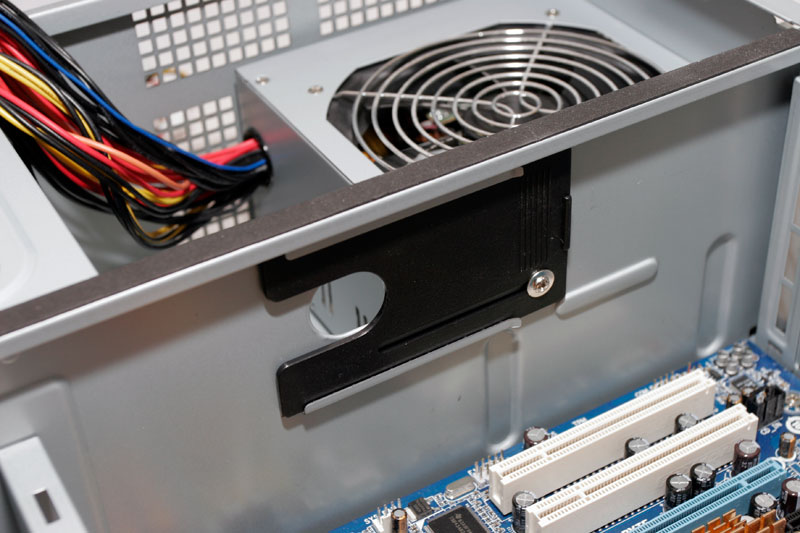

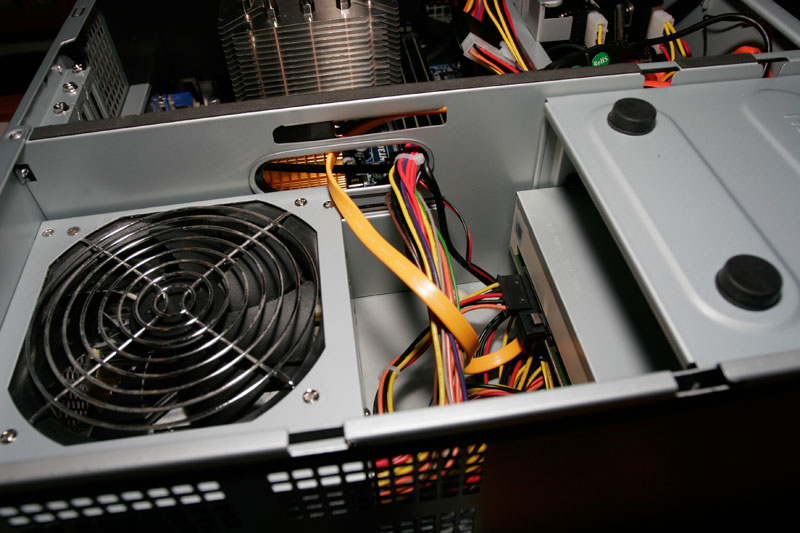

It’s a hole in the "wall" for the PSU power cables and the DVD connectors.

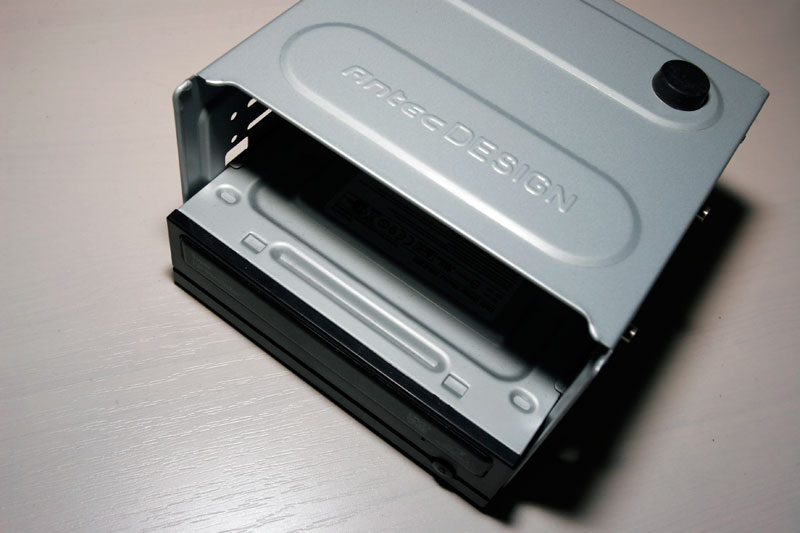

The DVD drive is in the DVD cage.

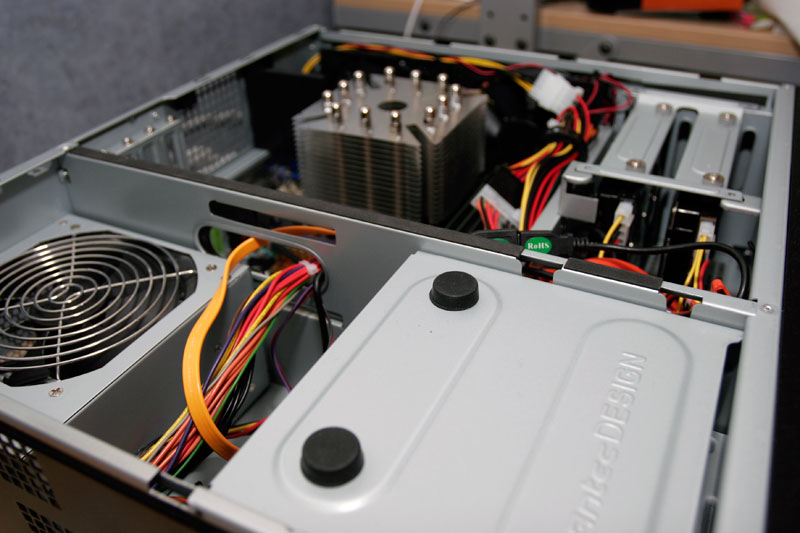

All in it’s place.

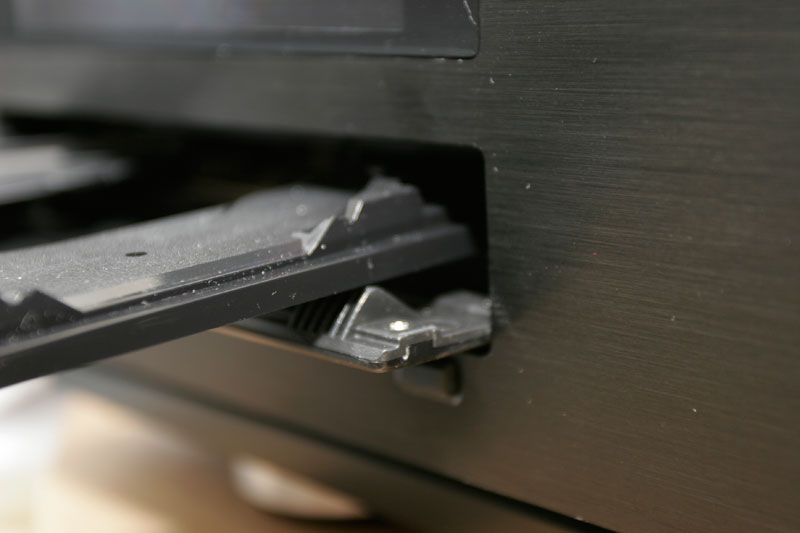

You can see how the aluminium door is pushed down and when the DVD door is out.

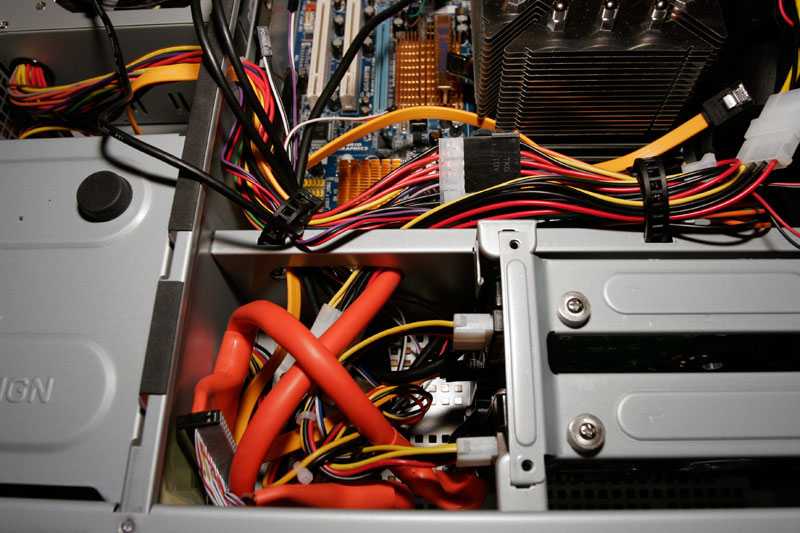

Cables lots of cables ;)

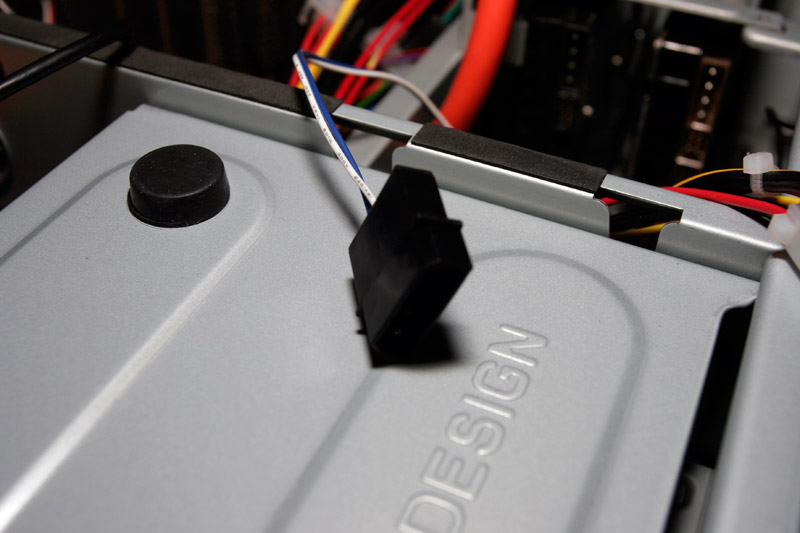

One molex for the power led at the front.
