Antec Fusion Remote Black
The case comes in a very nice package, with a big picture on the front and more detailed information about its features on the sides and on the top.

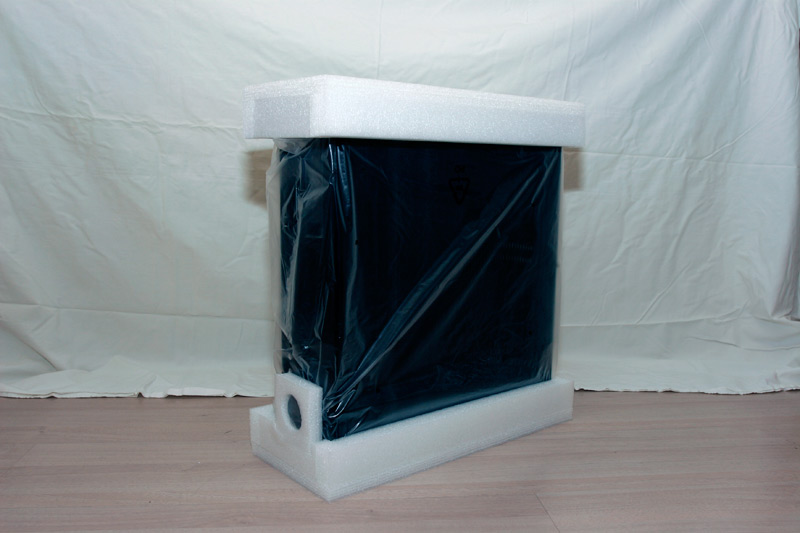

When we extract the case from its box, we see that it’s very well protected with padding, even the volume knob. Under the padding the case has a plastic bag to protect it from scrathes.

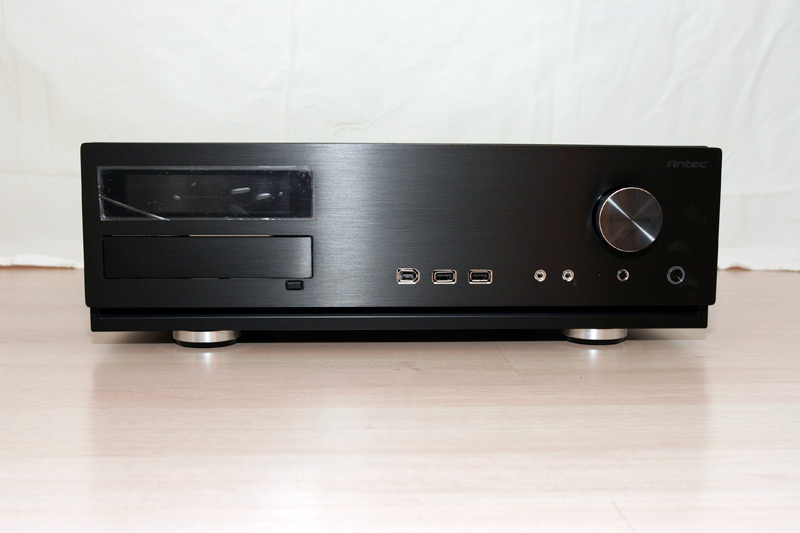

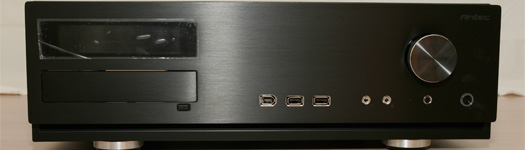

Let’s take a look on the front, it has a nice black aluminium front. From the right we see the volume knob and right under it is the reset button and then the power button. In the middle it has a firewire port, two usb ports, one jack for a microphone and one jack for headphones.
The DVD is placed behind the stealth aluminium door, very nice solution, and it gives the front a professional and stylish look. Notice that the LCD glass has a protective plastic film placed on it to protect it from scratches during transport.

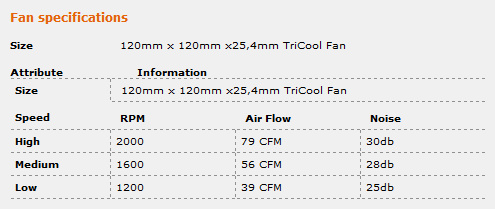

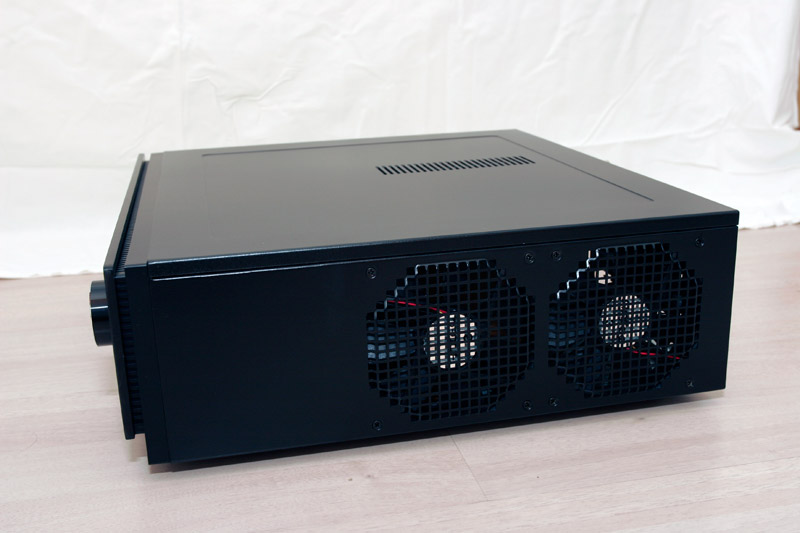

On the right side of the case there are two 120mm TriCool 3 speed exhaust fans that handle the heat by extracting it out from the case.
On the top of the case we see the upper air intake, there is vents right above the PCI expansion slots. Cool air will flow through it down to the motherboard chamber and cool the VGA card.

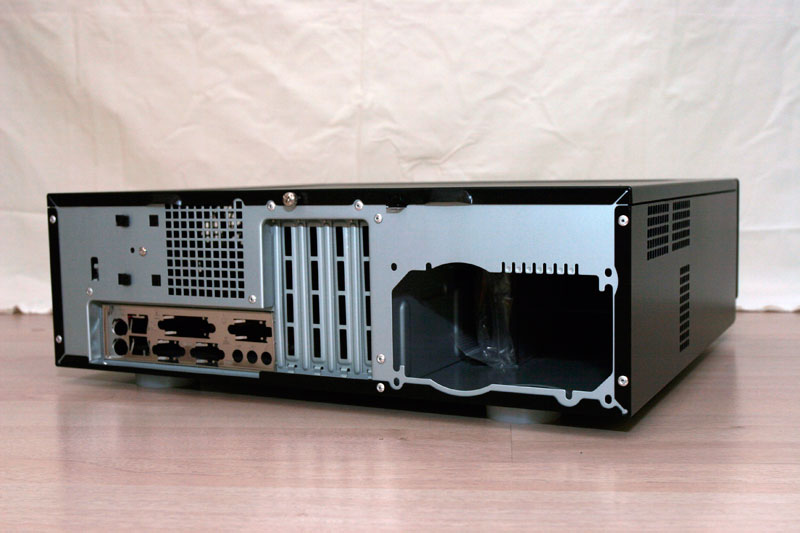

From left to right we have the IO-panel and above it there is the rear air intake that allows cold air to flow to the CPU and VGA card. There are four expansion slots for add-on cards like a VGA card. The power supply has its place on the right, there is also a power supply air intake on the right where air can flow into the power supply chamber to cool the power supply.

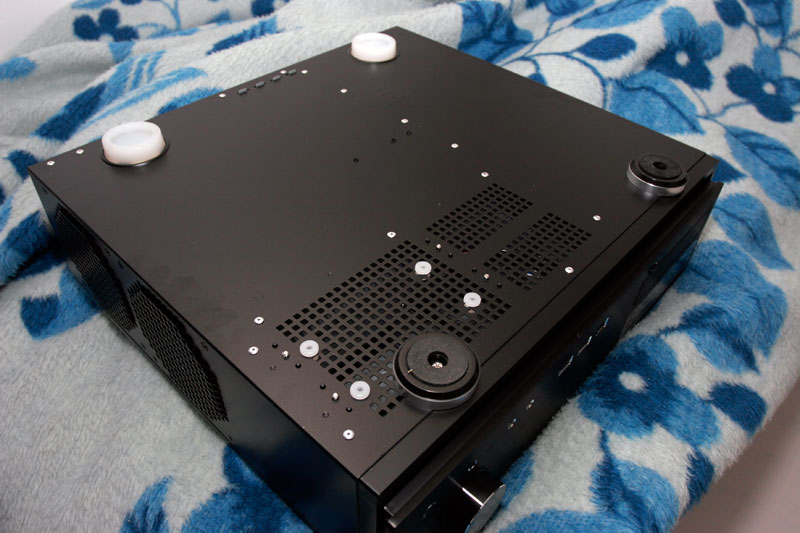

Here we see the bottom air-intake, it’s for the HDD chamber.
