Taipei, Taiwan – 11/05/2009 – Following the overwhelming success of the full tower HAF 932, Cooler Master extends the HAF (High Airflow Flow) line to a mid tower in the HAF 922. This beastly machine comes with rugged looks, massive air flow cooling and the Cooler Master trademark interior. Building the dream machine is now well within reach.

Killer Looks
HAF 922 makes no secret for potentially transforming all your high-end hardware components into a raging machine. It possesses a muscular and beast-like design that signifies performance without even opening up the system. Intimidating style and the performance makes it a killer combination.

Unrestrained Airflow & Thermal
HAF 922 supports up to seven fans in total, including three of those that support 200 mm fan (which are swappable for smaller 120mm or 140mm fans) for maximum airflow while maintaining a quiet environment. An independent air intake has been designed for a bottom-mounted PSU for easy installation and improved heat management. For overclockers, this chassis even supports liquid cooling set-ups with retaining holes in the back and room for an internally installed radiator.

Easy Installation & Upgradeability
A well thought-out interior has become a trademark for Cooler Master chassis. Starting with a CPU cooler retaining hole that was first introduced in the ATCS 840, it allows for quick installation of CPU cooler without removing the motherboard. Unbeatable cable management makes for less clutter and system maintenance. Tool-free 5.25” and 3.5” drive bays for easy in-and-out. A 7+1 PCI slot for added expandability and a spacious interior to house all types of high-performance hardware.

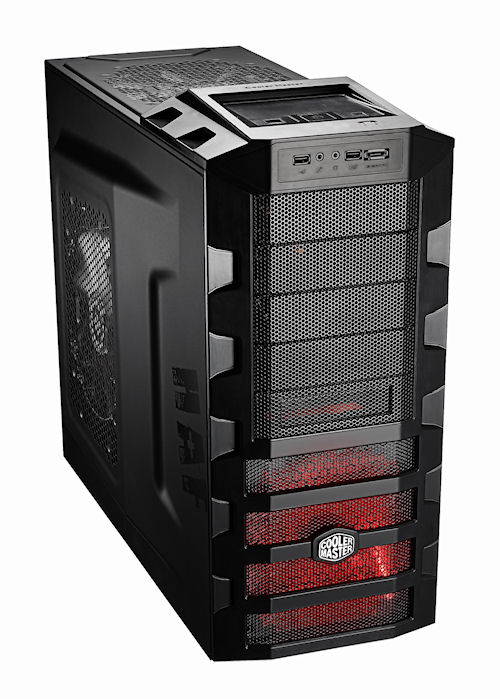

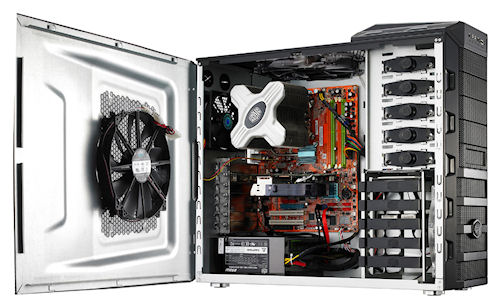

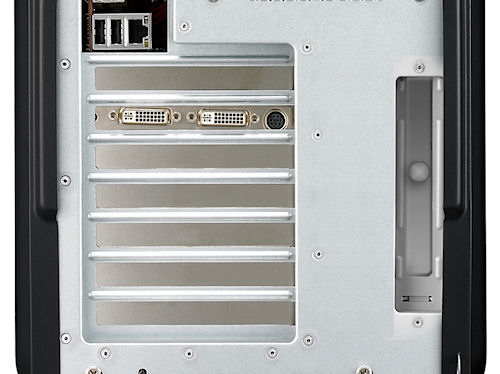

Front panel w/ 200mm fan, 200mm side fan (optional), 7+1 PCI non-mesh slots

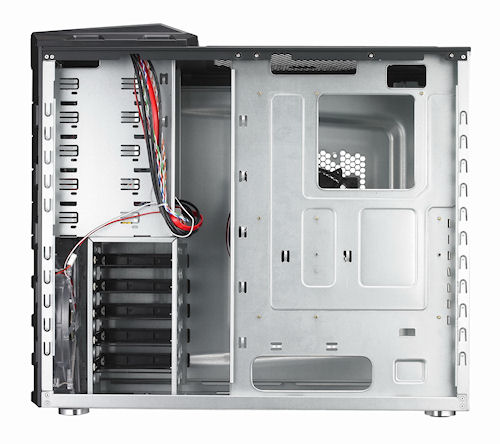

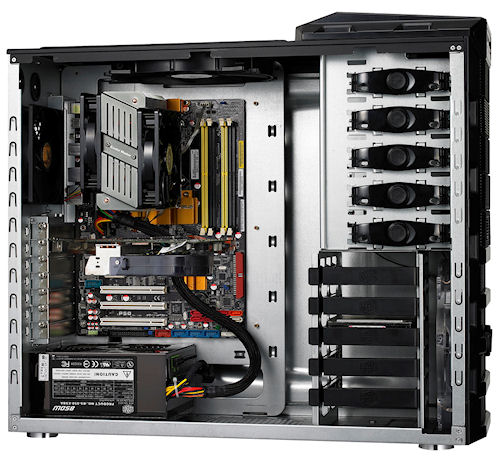

Cable Management, Tool Free Install, Supports Liquid Cooling

Specifications

• Available Color: Black
• Material: Steel
• Dimension (W x H x D): Main Unit: 253 x 502 x 563 mm / 10.0 x 19.7 x 22.2 inches
• Box: 285 x 550 x 605 mm / 11.2 x 21.7 x 23.8 inches
• Weight (N / G): 8.7 / 10.9 kg ; 19.2 / 24.0 pounds
• Motherboard Type: ATX / Micro-ATX
• 5.25” Drive Bay: 5 Exposed (one could convert to 3.5” drive bay)
• 3.5” Drive Bay: 5 Hidden, 1 Exposed (converted from one 5.25” drive bay)
• Front Panel: USB 2.0 x 2, MIC x 1, SPK x 1, eSATA x 1, Audio x 1 (support HD / AC97 Audio)
• Expansion slot: 7 + 1
• Cooling System Front: 200 mm fan x 1 Red LED on / off fan x 1 / 700 RPM / 19 dBA (can be swap for 120 / 140 mm fan x 1)
• Top: 200 mm fan x 1 / 700 RPM / 19 dBA (can be swap to 120 mm fan x 2 )
• Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA
• Bottom: 120 / 140 mm fan x 1 (optional)
• Side: 200 mm fan x 1 (optional) (can be swap for 120 mm fan x 2)
• Power Supply: ATX PS2 / EPS 12V (optional)
