As with previous tests we use the following components in our test rig.

• Intel Core2Duo E6600 @ 2.4GHz 4MB FSB1066
• Gigabyte GA-965P-DQ6 iP965
• XFX GeForce 8800GTX XXX 630MHz GPU 768MB DDR3
• 2 GB Corsair XMS2-6400 Twin2X2048
• 3x Western Digital WD2500JS 250GB 7200rpm 8MB SATA2
• Antec P182 computer chassis
• Windows Vista Ultimate

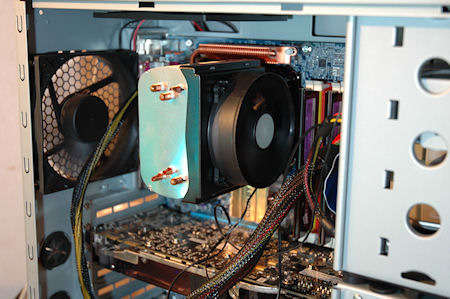

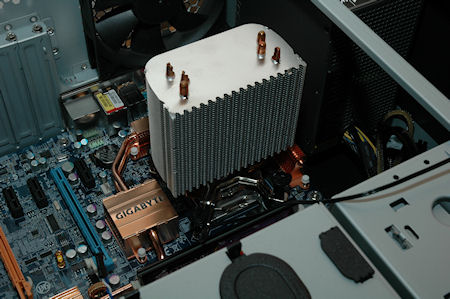

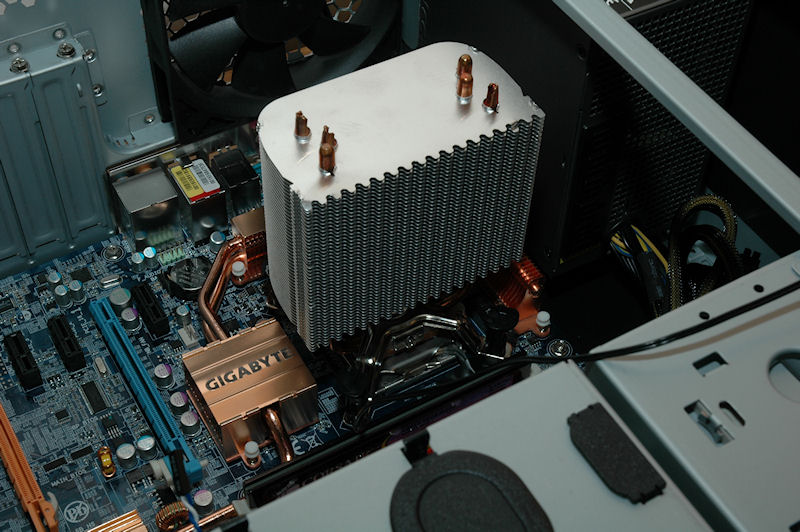

Some final pictures of the cooler installed.

If you want, you can visit our [guidelines] to see how we test our products. The ambient temperature during tests were 21º Celsius.

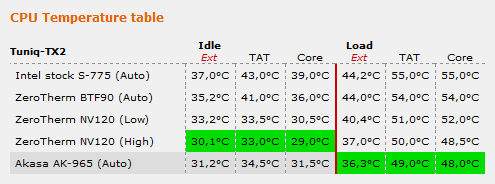

Temperatures is measured with an external temperature measurement tool and using two programs. The first is “CoreTemp” and the second one is “Intel Thermal Analysis Tool” named respectively in the temperature result table Core / TAT.



Compared to the other coolers in our list this is not the best performer when it comes to idle mode but the cooler is quiet, which is a great plus. However at full load the fan is still producing very low noise and it actually performs better and therefore is a good performer against the other coolers.

The higher temperature in idle mode is due to that the fan is on the verge to stop and it even does stop at sometimes when the temperature allows it. Which means, this cooler is dead quiet at those times, isn’t that just perfect?

On next page we’ll take a look at our conclusion and the score table.
